Key Components

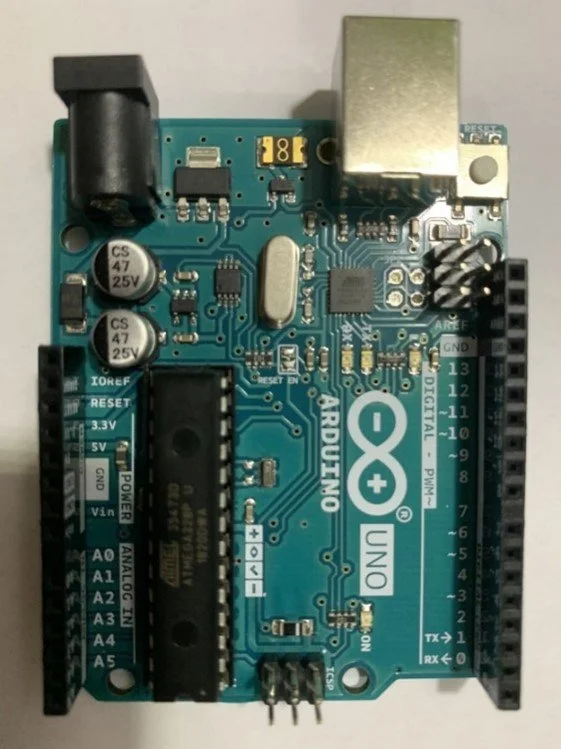

Arduino Uno
Arduino Uno is a microcontroller board developed by Arduino

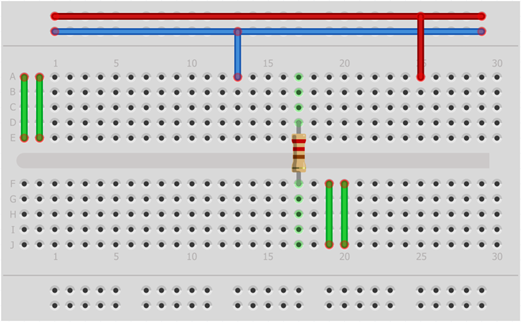

Breadboard
A breadboard is a piece of equipment that is used in testing temporary circuits where all the holes are connected.

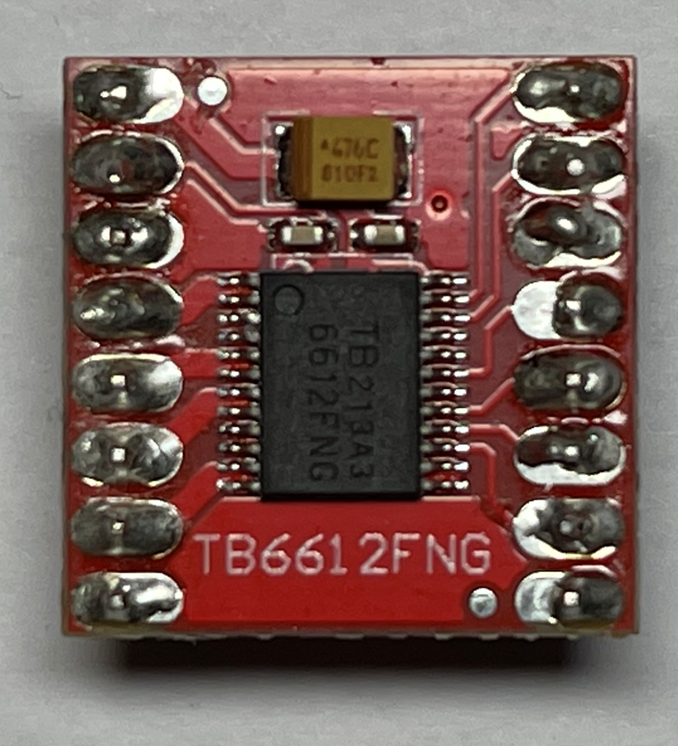

Motor Controller
The motor controller (TB6612FNG) enables both motors to be controlled independently in terms of direction and speed

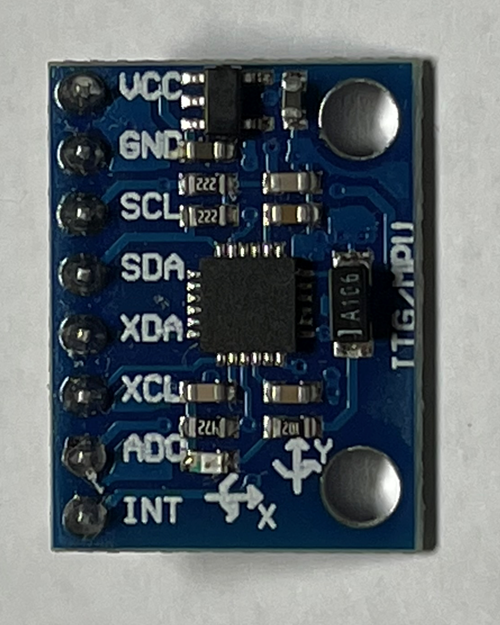

MPU6050
This component is used to measure the orientation of the rover in terms of its, acceleration or angle using a three-axis gyroscope and three axis accelerometer.

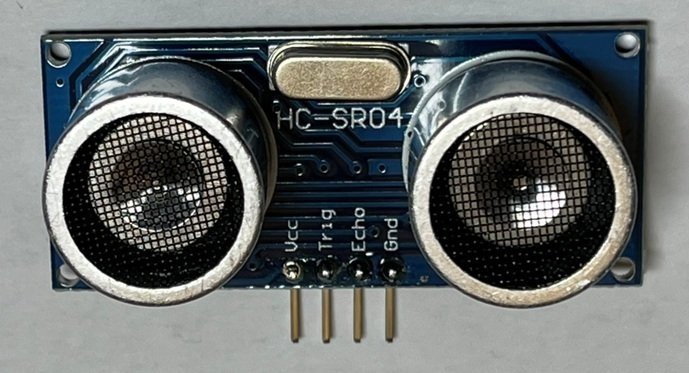

Ultrasonic sensor
It is an electrical component which uses ultrasonic waves to measure the distance to an object by measuring the time delay for the wave to be transmitted and received.

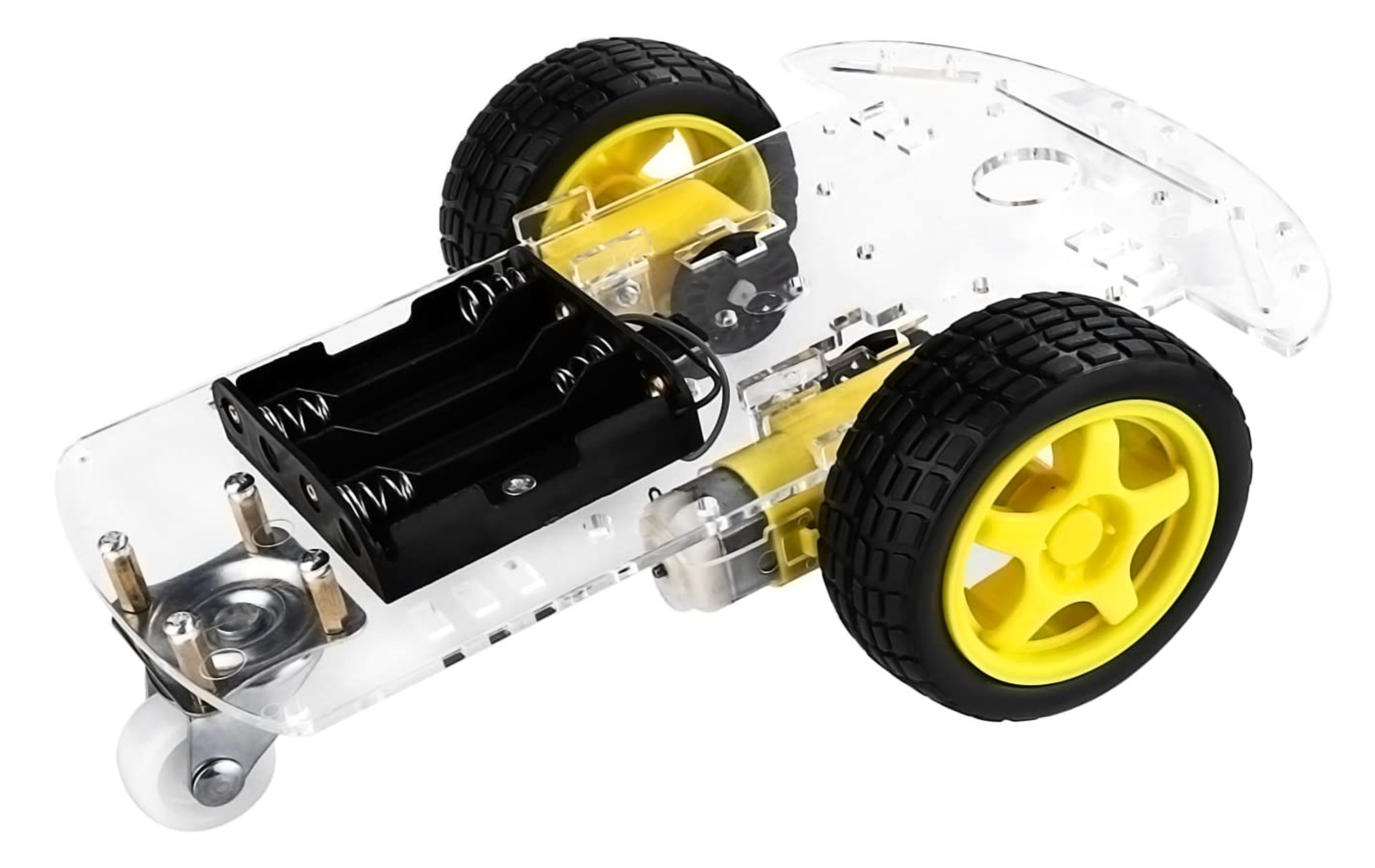

Rover Chassis
This is the chassis which holds all the components together to make up the rover. Also includes the 2 TT Gearmotors.

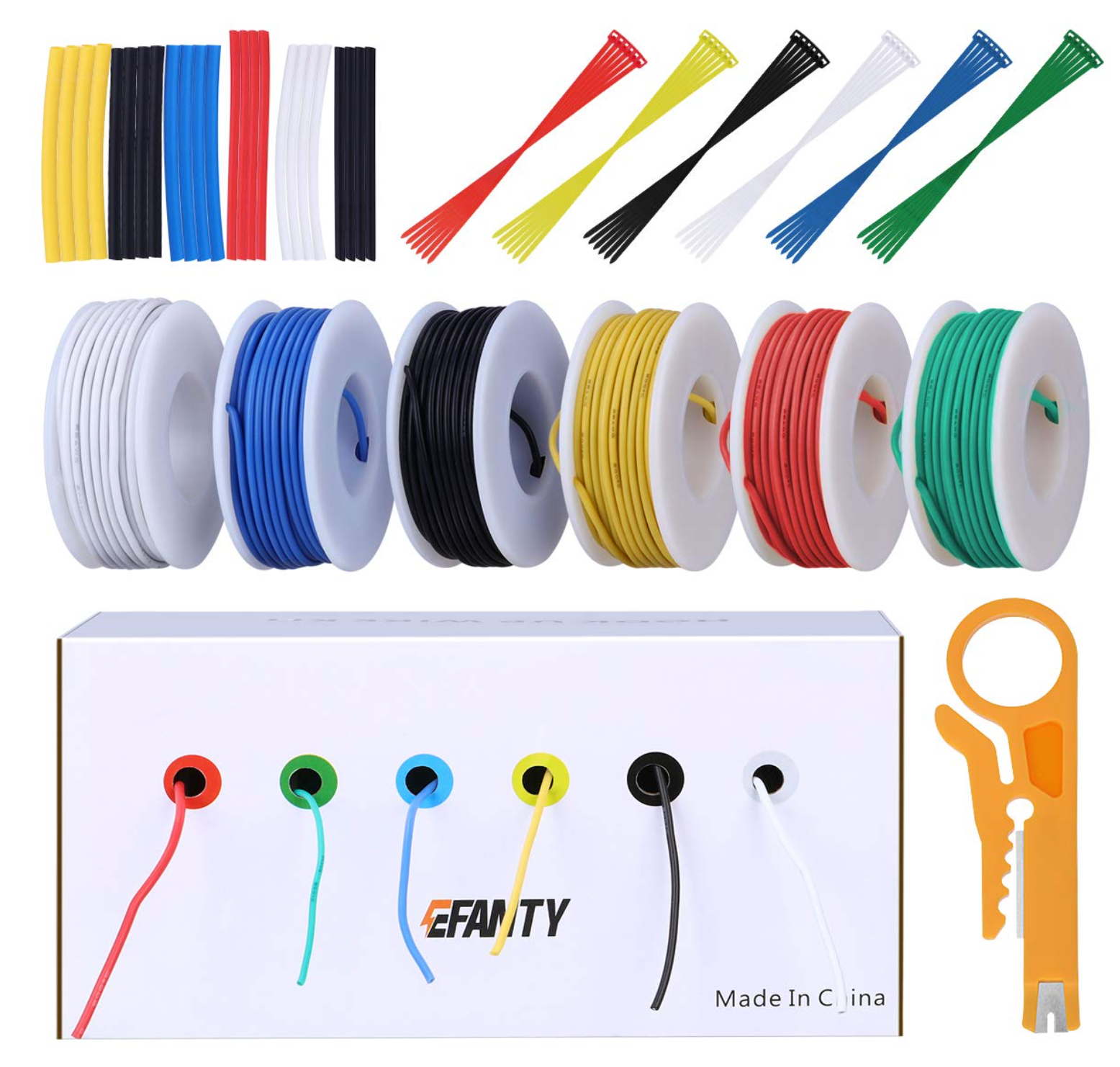

Wires
Wires required for soldering and wiring up the circuits

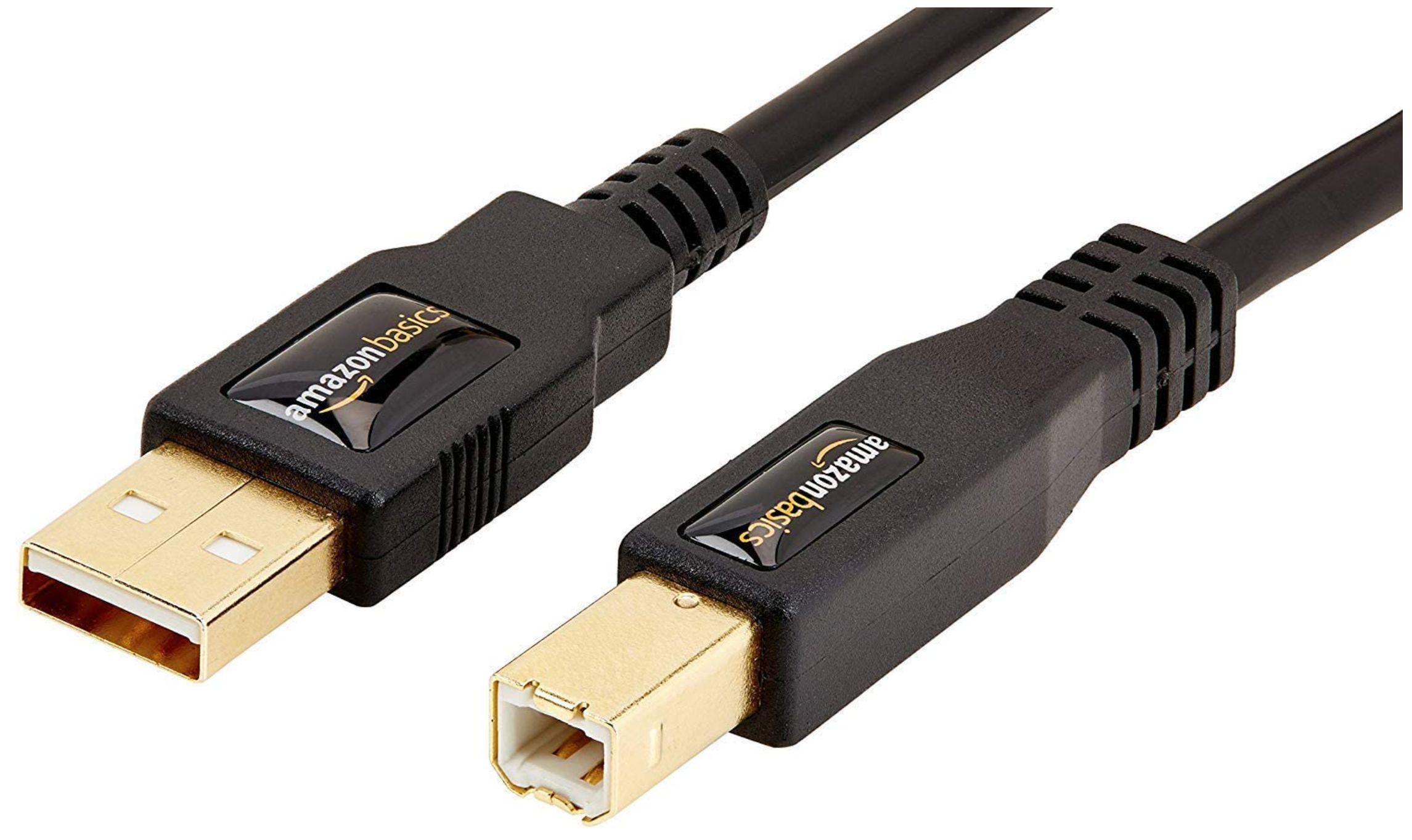

USB 2.0 A-Male to B-Male cable
Connects the Arduino Uno to your computer to power it and upload code.

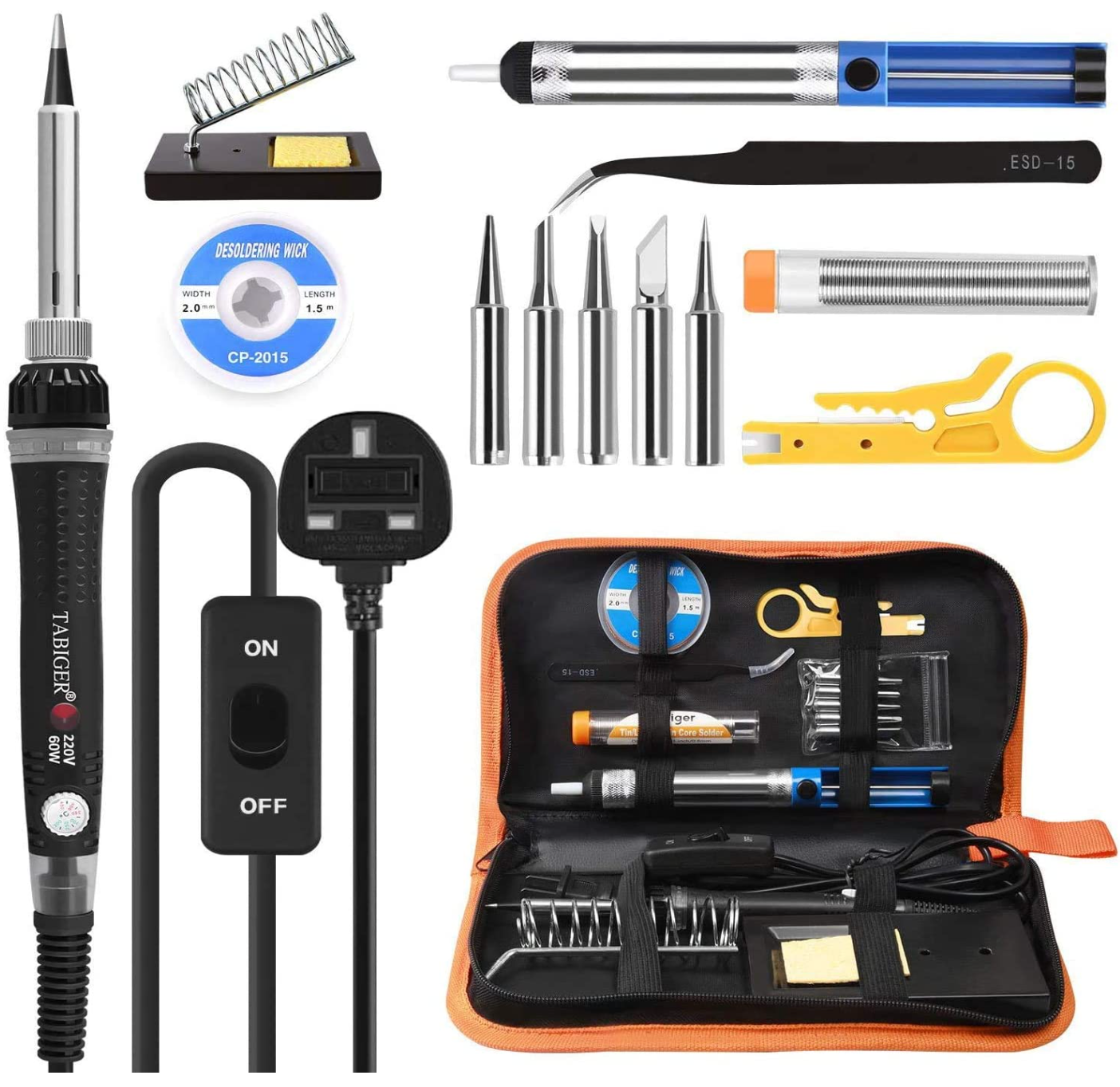

Soldering Kit
Required to solder the pins on the motor controller, MPU6050 and solder wires to the electric motors.

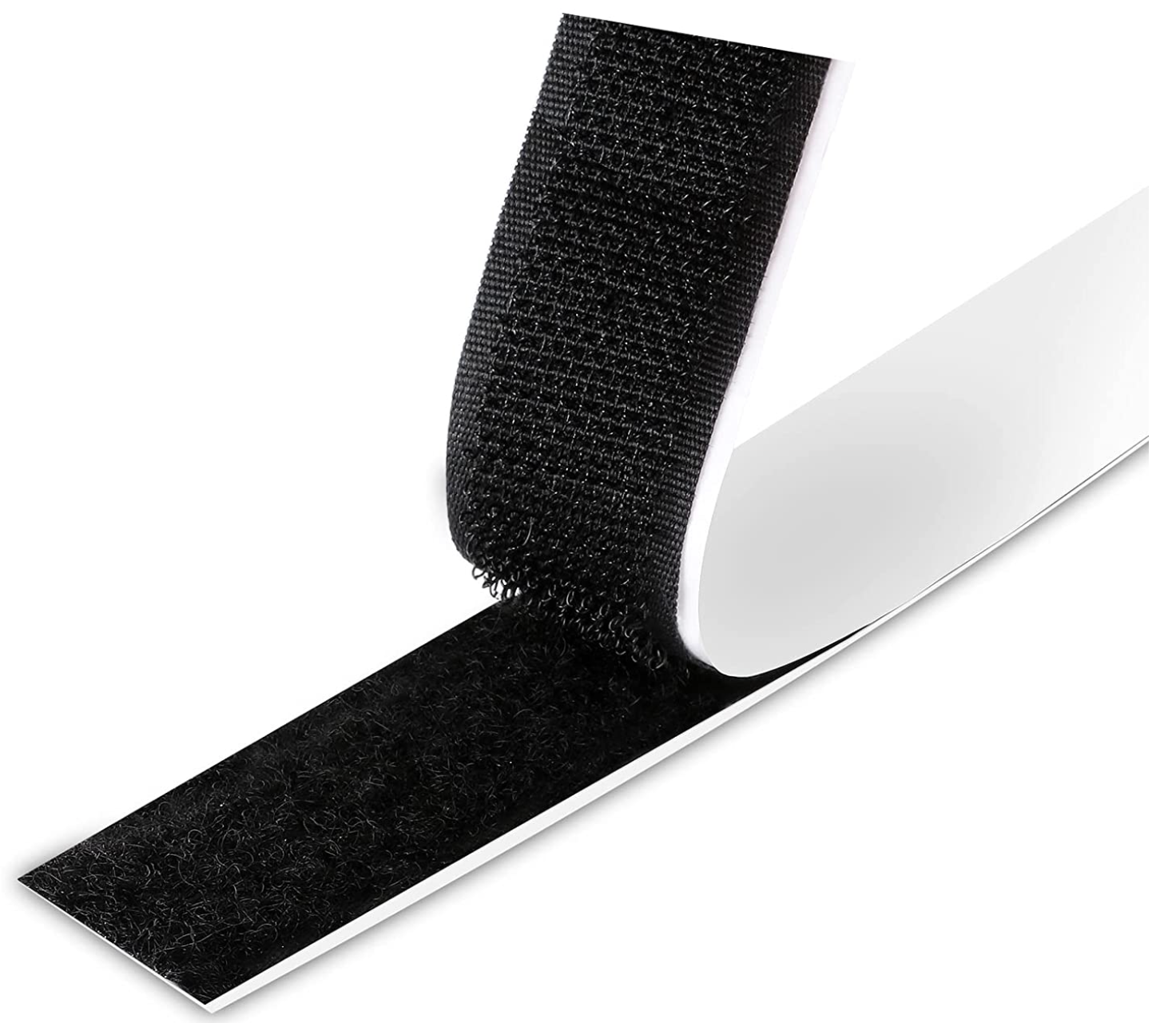

Velcro Tape
Can be used to attach all the components to the chassis.

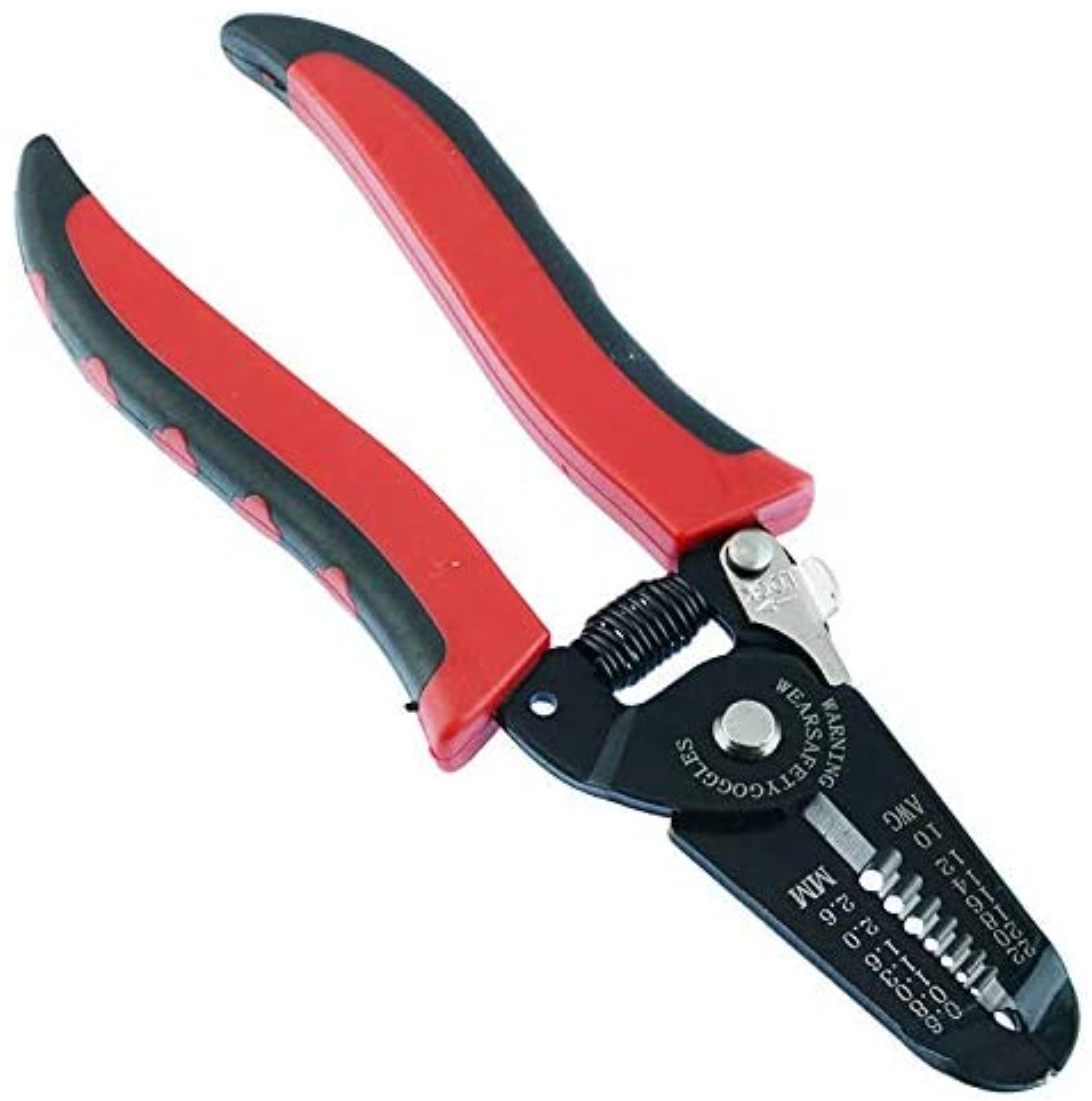

Wire cutters
To cut custom lengths of the wire to help build organised circuits
Drone specific components

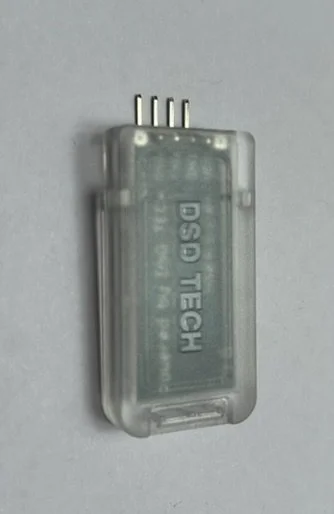

HM-10 Bluetooth module
Enables Bluetooth connection which allows the phone to communicate with the Arduino Uno

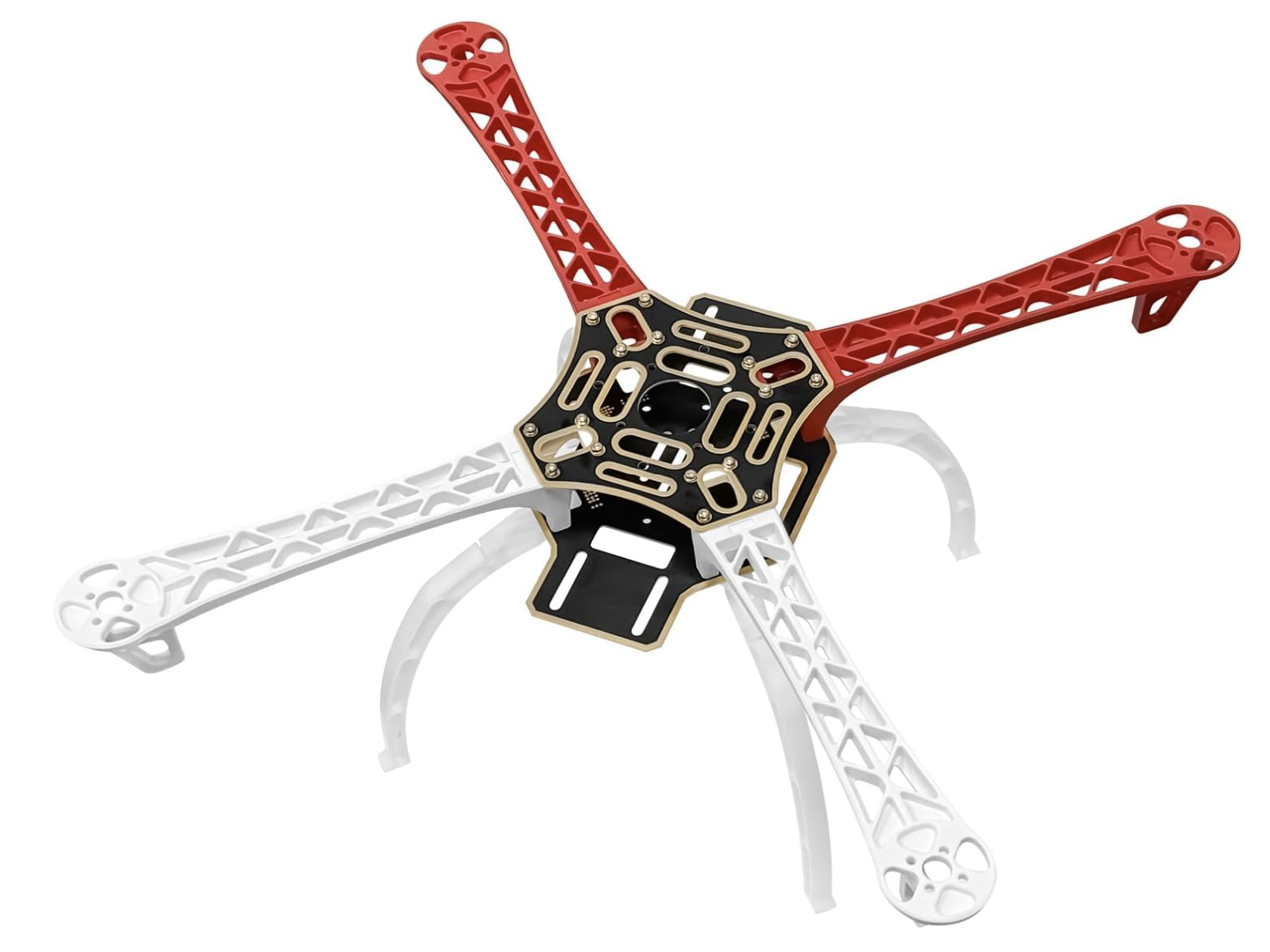

Hawk’s work F450 drone frame
It provides the mounting points for all the components of the drone

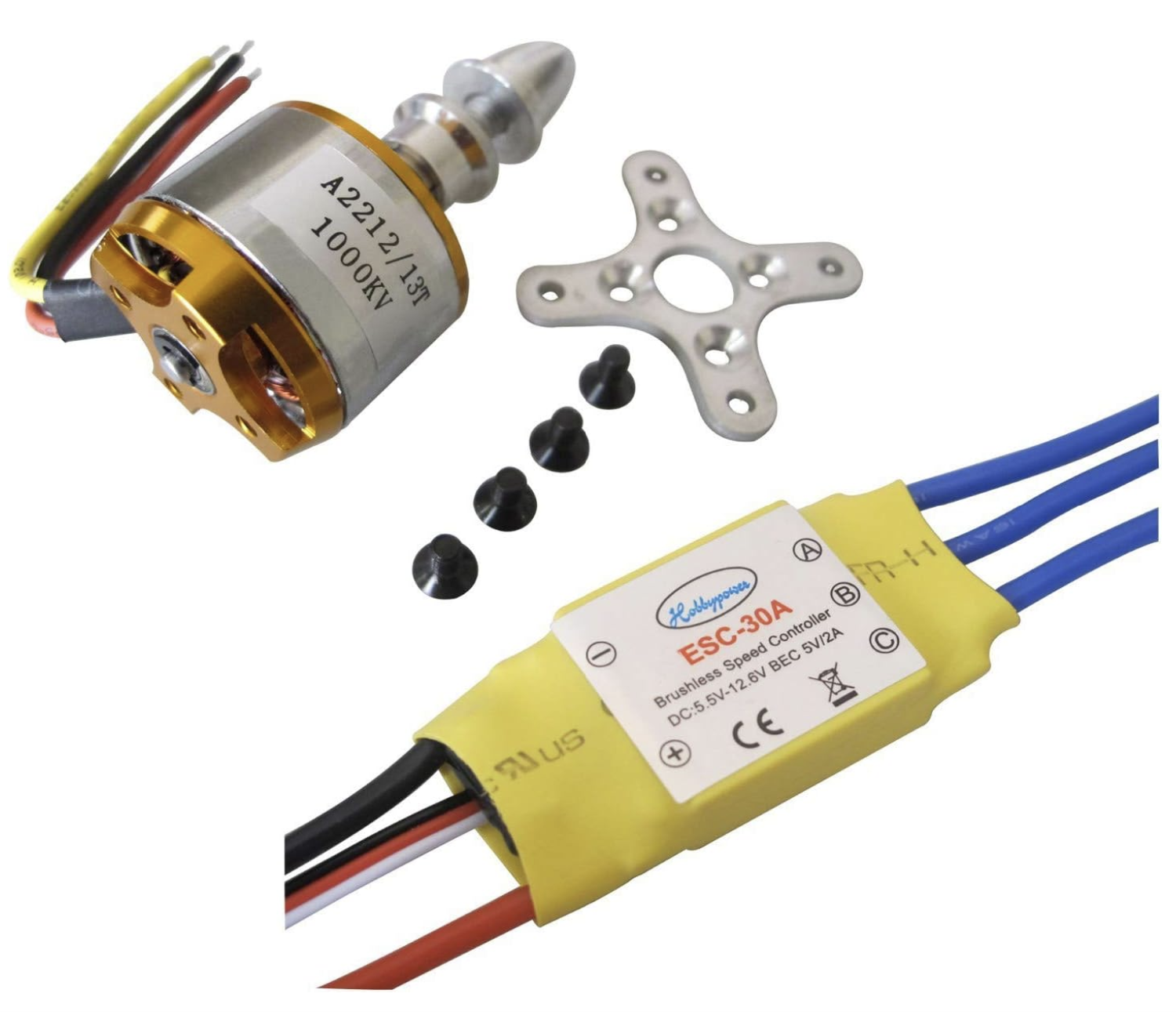

ESC motor controllers & Brushless DC motors
Powers the DC motors and controls its rotation by given inputs
LiPo Battery
Powers the drone

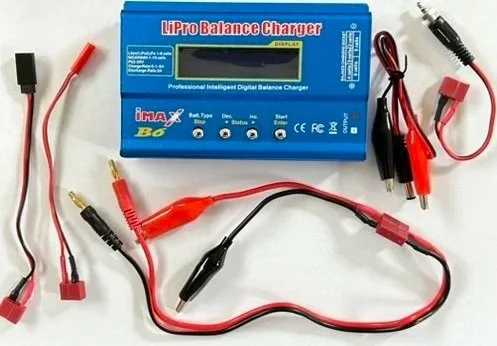

LiPro Balance Charger
Charges the LiPo Batteries

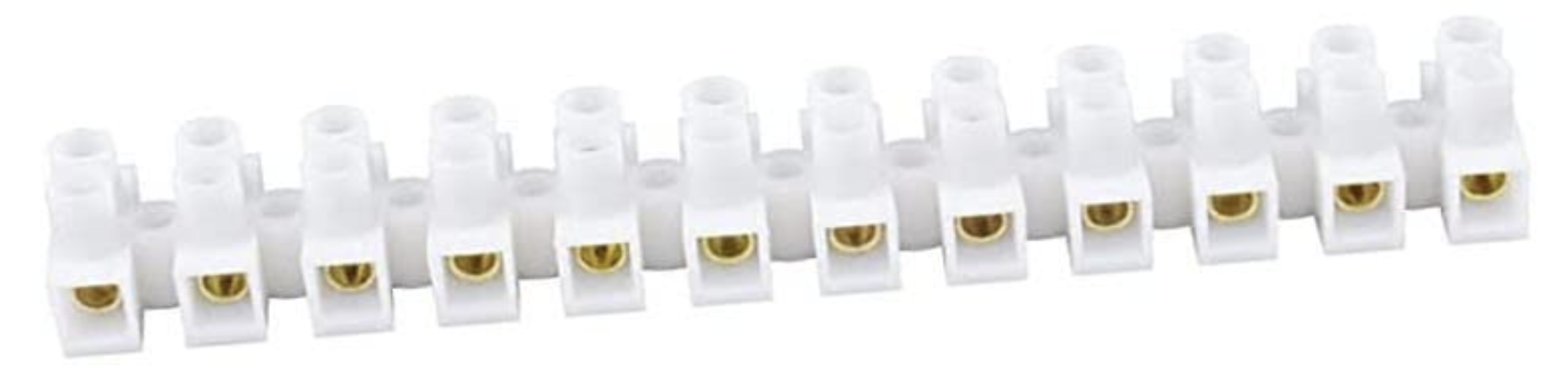

Wire connectors
Allows two wires to join together without the need of soldering

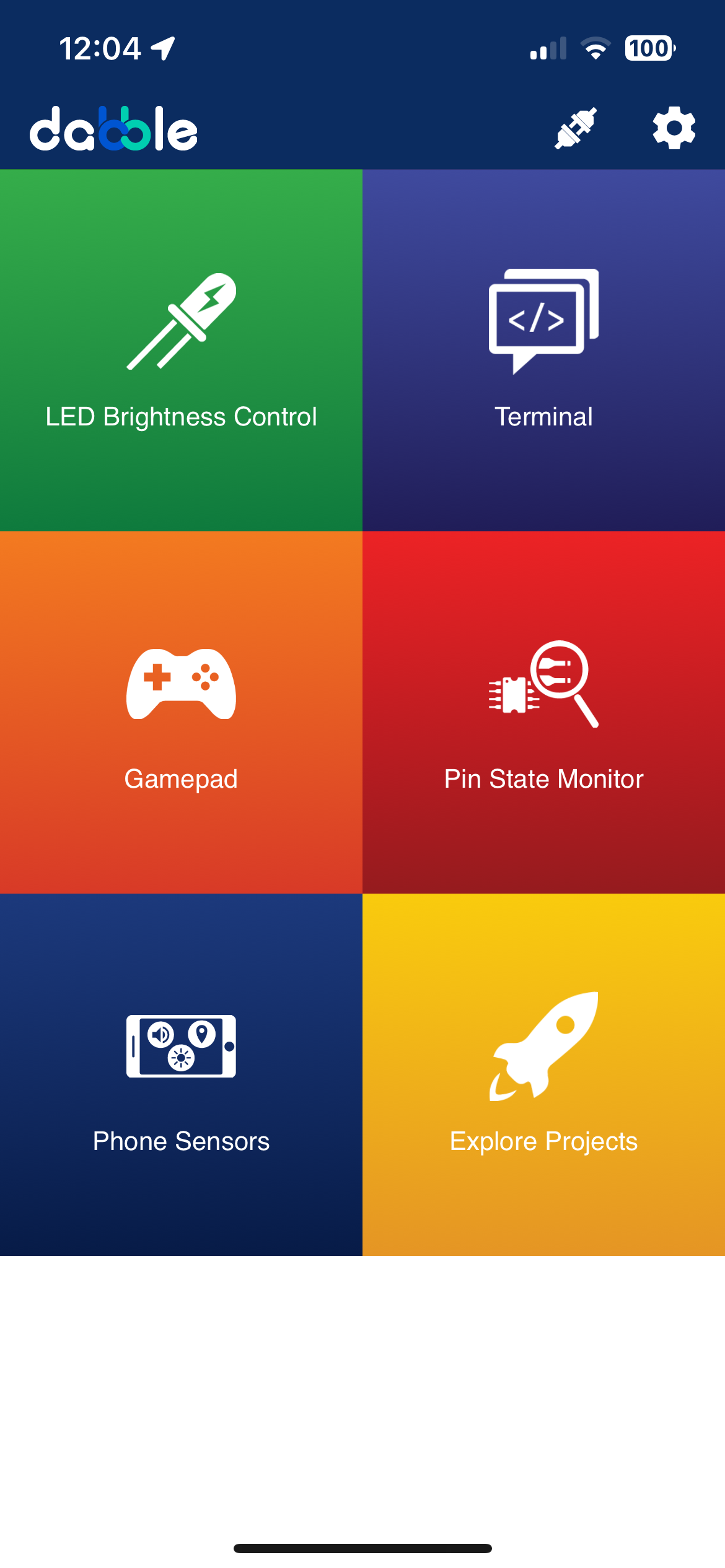

Dabble App
Allows the phone to connect to the Bluetooth module and communicate with the Arduino Uno
Scan the QR code to download the app
